Reliable low-flow performance
- All-in-one control solution: Pre-wired pack with keypad, flow switch, and harnesses - ready for quick installation.
- Low-flow specialist: 3.0 kW heater and dedicated flow switch protect against dry-fire in quiet-running circ systems.
- Gecko reliability: YE-5 control logic offers intuitive diagnostics and field-proven performance.
- Future-friendly: Supports ozone, 12 V lighting, and modern low-energy pumps.

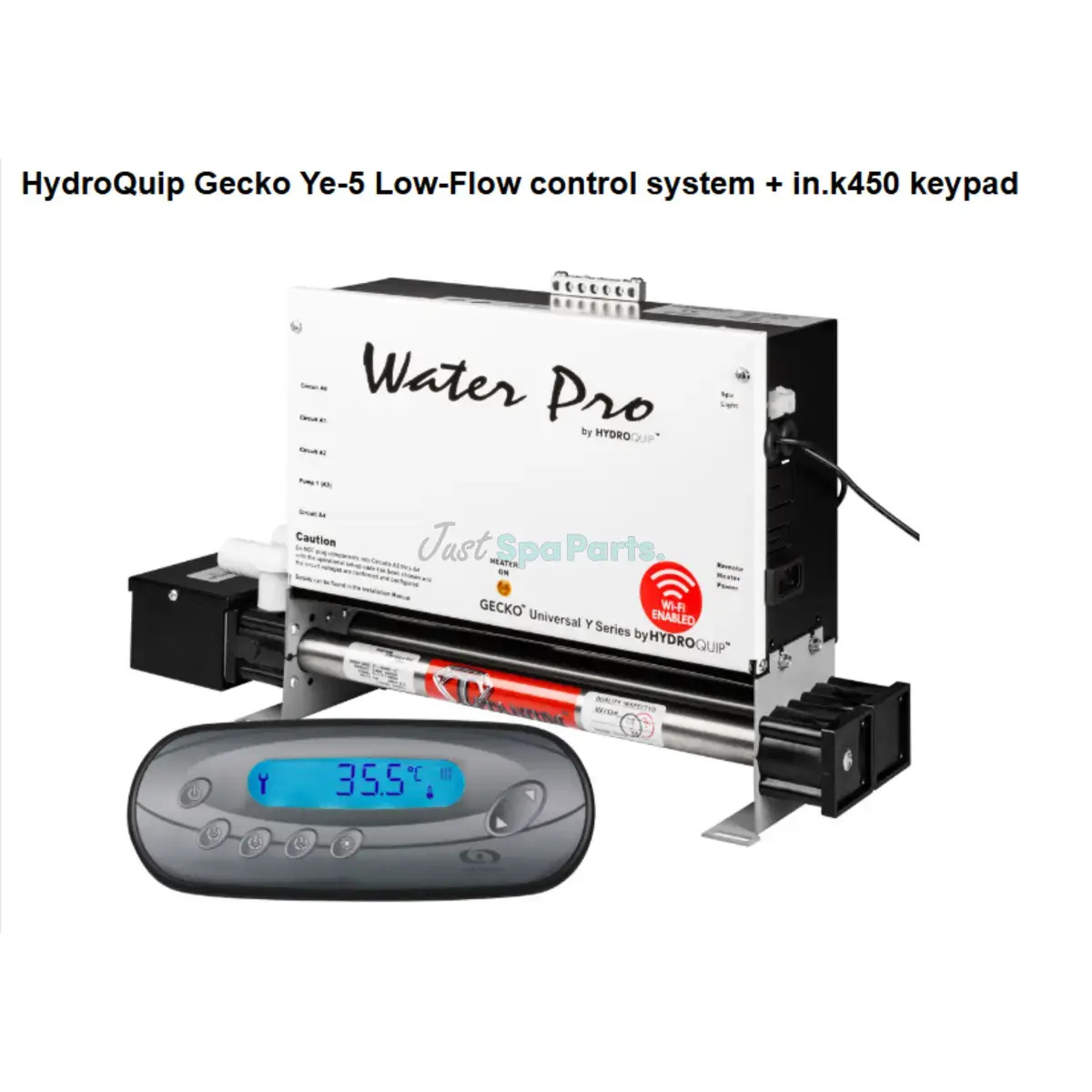

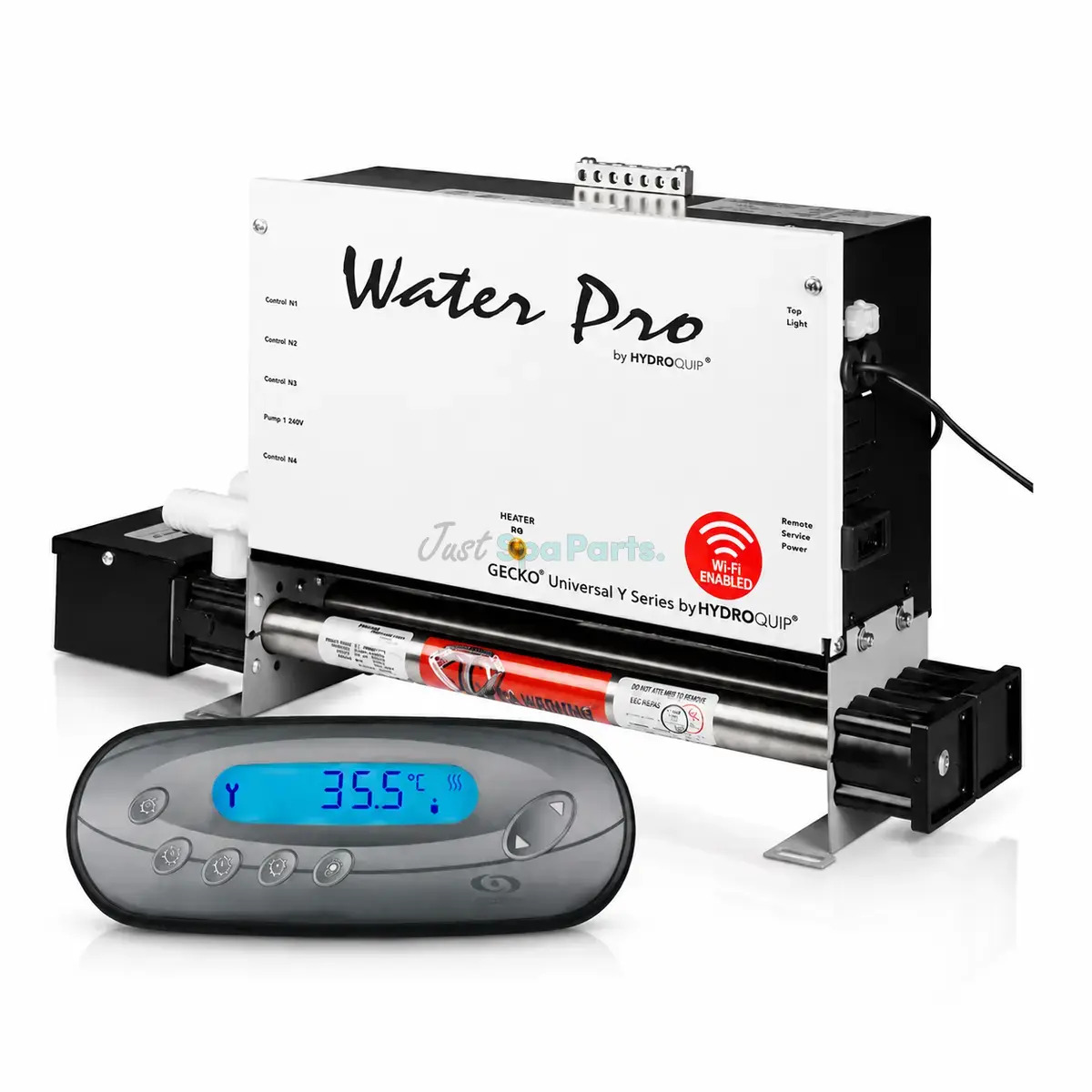

The HydroQuip YE-5 Low-Flow Spa Pack combines Geckos Y-Series control logic with a compact vertical heater assembly designed for quiet, efficient circulation systems. A dedicated flow switch ensures consistent protection for the 3.0 kW element, even at reduced flow rates.
Faster, cleaner installation
- Includes in.k450 keypad, cables, adaptors, and light harness - everything needed to complete the setup.
- AMP connectors and clear labelling speed up electrical connections.
- Keypad diagnostics simplify commissioning and fault tracing.
Engineered on the Gecko YE-5 platform
Part of the HydroQuip HQ6000 family, this system uses Geckos trusted architecture for consistent operation and broad compatibility with modern spa components.
Technical Specifications
| Supply | 230 V AC ±10 %, single phase 50 Hz |
| Heater | 3.0 kW low-flow, flow-switch protected |
| Control Platform | Gecko YE-5 (Y-Series) |
| Outputs | Circulation pump, ozone, 12 V light, jet/aux as configured |
| User Interface | in.k450 keypad (included) |
Whats in the Box
- in.k450 keypad + mounting plate
- Flow-switch kit
- 2 × 4-core AMP cables / 3 × 3-core AMP cables
- 3-core expansion cable
- Sensor and spaside adaptors
- Light harness and casing
Typical Applications
Designed for spas using low-flow circulation systems. Ideal as a new-build controller or a direct replacement for earlier YE-Series or HQ6000-based packs.
