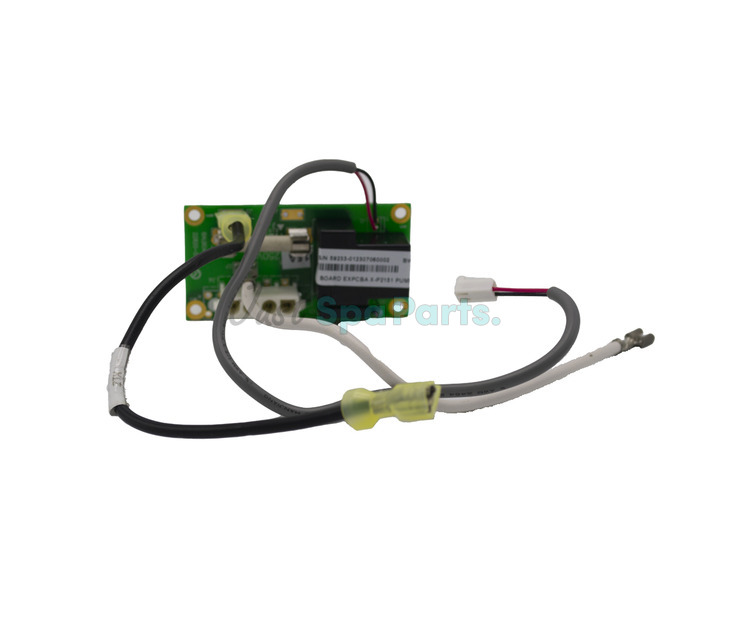

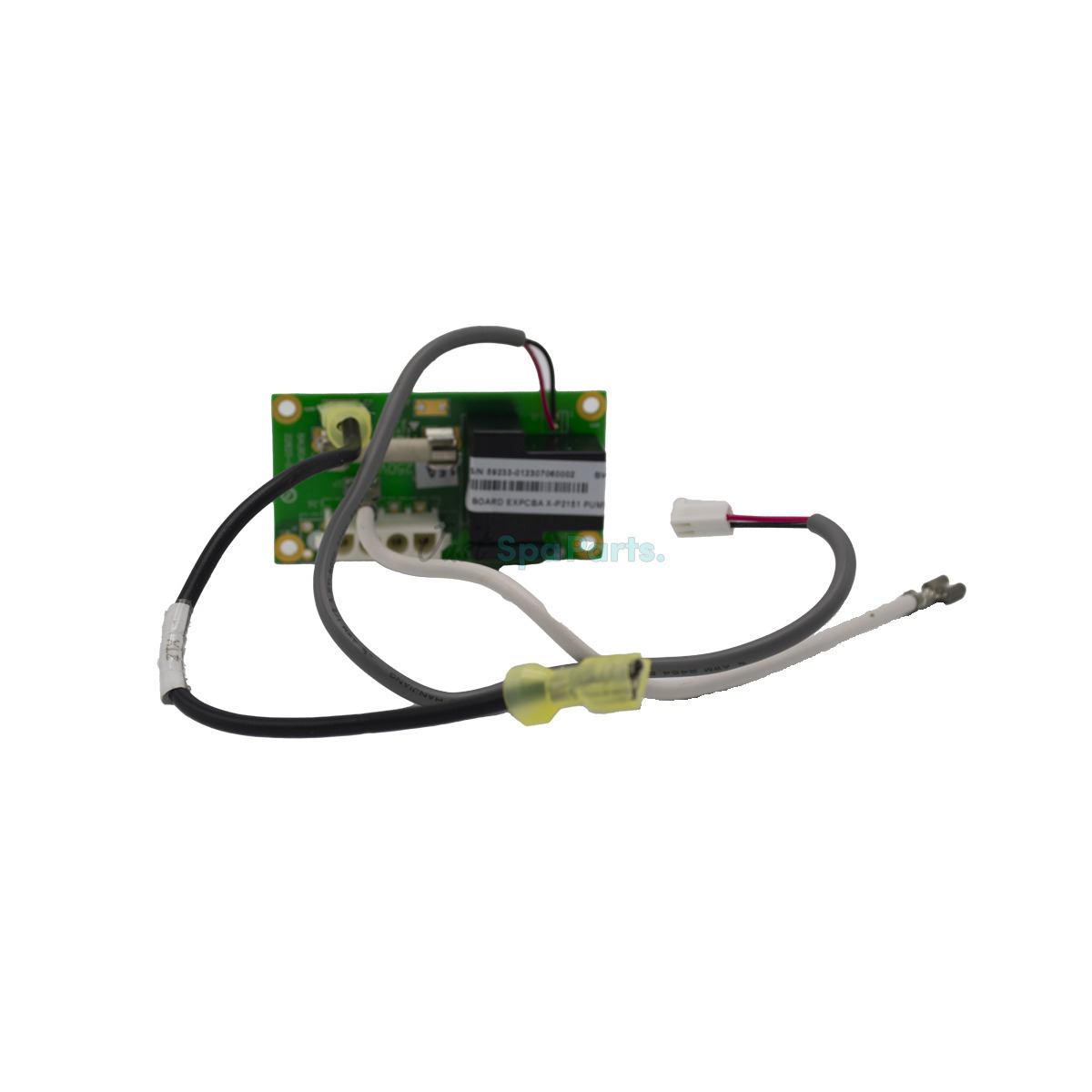

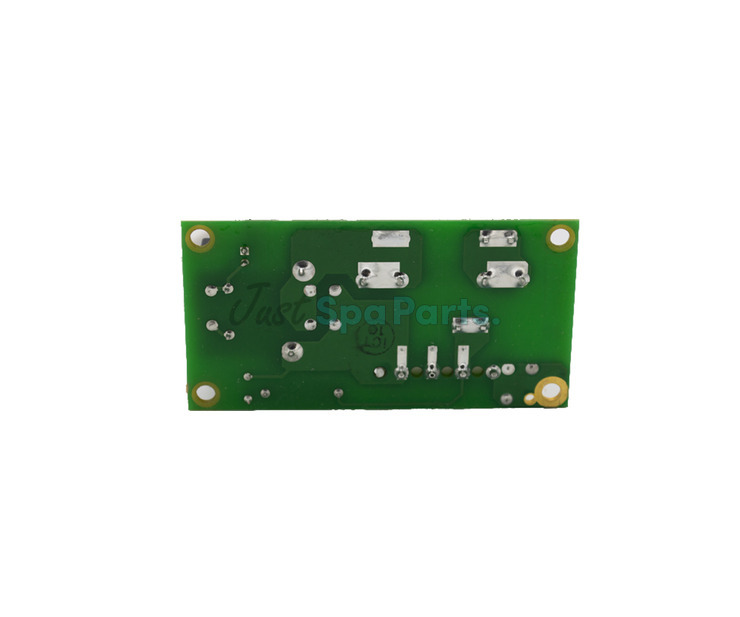

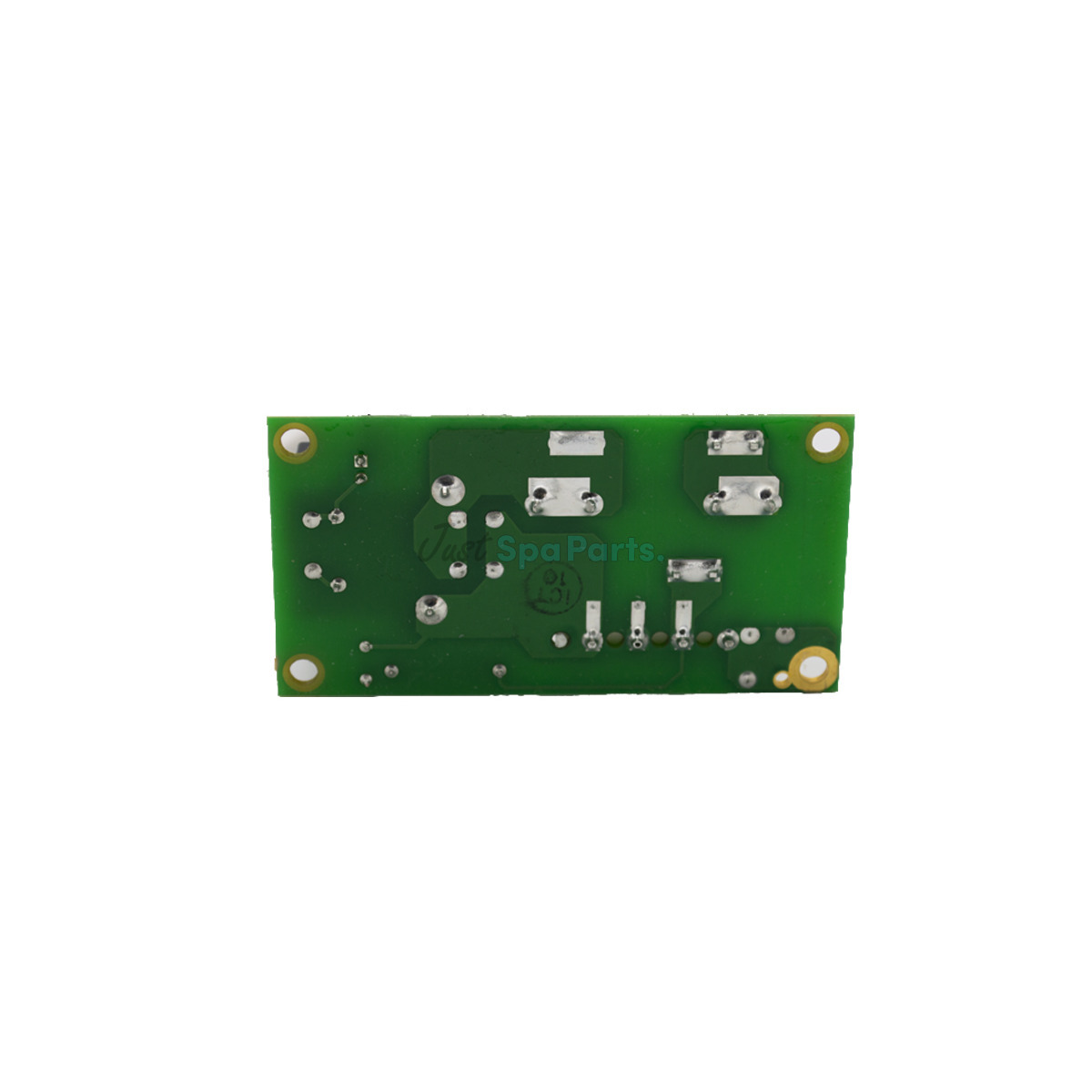

The Balboa Expander X-B (59231 / 59231-01) is designed to upgrade the equipment capacity of Balboa's BP100G3, BP200G3, and BP200UX control packs; allowing for an additional 1-speed air blower to be added to the system.
WARNING: Water and electricity do not mix. To avoid the risk of electric shock, this equipment must only be installed and serviced by qualified personnel, failure to do so can result in serious injury or death.
Always follow the manufacturer's instructions and safety precautions. If you are unsure about any step in the process, it's essential seek the assistance of a qualified professional.
Key Features
- Adds a 1-speed air blower to compatible Balboa BP series control systems
- Designed for the Balboa BP100G3, BP200G3, and BP200UX control packs
- Features an integrated F5 fuse rated at 10A 250V (SLO-BLOW)
- 15 Minute Timer (By Default)
Configuration
To enable the expander board functionality, you will need to configure the Balboa spa pack settings whilst the spa pack is powered. If you are unsure about any step in the process, please refer to the Balboa spa pack user manual or contact a qualified spa technician for assistance.
- Access the spa pack's main board by removing the cover panel.
- Make note of the layout of the components and connections outlined in the wiring diagram on inside of the spa's cover.
- Locate the dip switches on the main board.
- Turn DIP Switch 1 to the ON position whilst the spa pack is powered to enable test mode
- Using the topside control panel, navigate the menu to select the required setup number
- Return DIP Switch 1 to the OFF position.
- Before replacing the cover, make note of the new configuration number on the provided space in the wiring diagram for future reference.
- Finally, replace the cover panel and secure it in place.
Setup Configuration Table
The table below outlines the various spa pack configurations that support the Balboa Expander X-B (59231 / 59231-01) blower expander board. This table is to be not to be used as reference when undertaking maintenance or installation. Please instead refer to the official Balboa documentation for accurate and up-to-date information.
Documentation Downloads
Configuration Options:| Spa Pack | Setup # | Circ Pump | Pump 1 | Pump 2 | Blower | User installed Expander |
|---|
| BP100G3 | 3 | Filters & Polling | 1-Speed | None | 1-Speed | X-B (NP 59231) |
| BP100G3 | 4 | None | 2-Speed | None | 1-Speed | X-B (NP 59231) |
| BP200G3 | 3 | Filters & Polling | 1-Speed | None | 1-Speed | X-B (NP 59231) |
| BP200G3 | 4 | None | 2-Speed | None | 1-Speed | X-B (NP 59231) |
| BP200UX | 3 | Filters & Polling | 1-Speed | None | 1-Speed | X-B (NP 59231) |
| BP200UX | 4 | None | 2-Speed | None | 1-Speed | X-B (NP 59231) |
Extended
