LX - WTB250 / WTB250T - Swimming Training Pump

3.5 hp - 1210 l/min Qmax - 11.5 m Hmax

LID: 86282

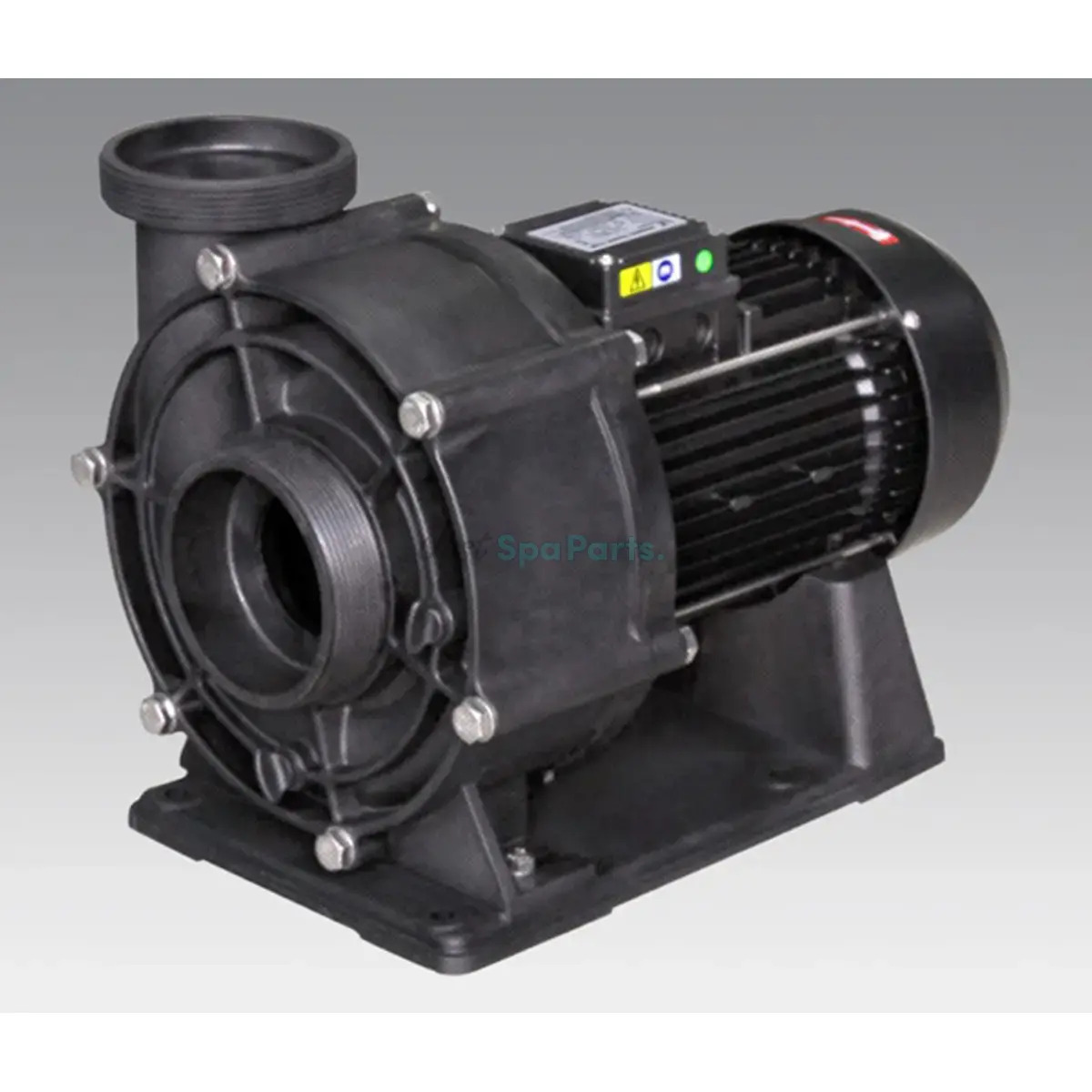

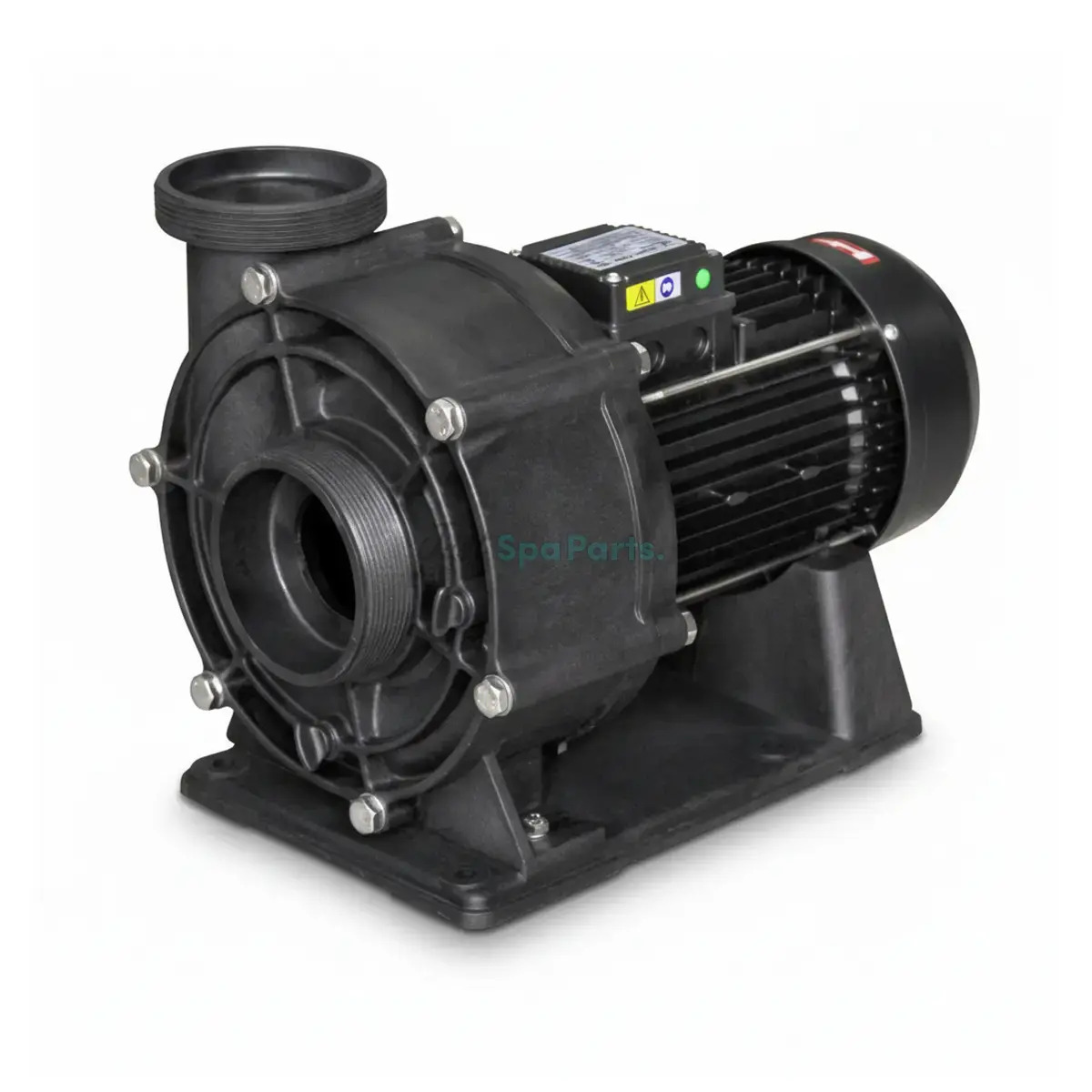

LX - WTB250 / WTB250T - Swimming Training Pump Main Image

High-Volume 1210 l/min Max Flow

Resin-Sealed Stator - Heat and Moisture Protection

Corrosion-Resistant Isolated Motor Shaft

Single- and Three-Phase Options Available

£550.00 Inc VAT

SKU: PMP-12828

MPN: WTB250

1 in our Main UK warehouseSame day dispatch by 14:00

QTY

Compare Product Ask us a Question

Fast UK Delivery

Next working day from £8.50 Standard from £4.50 or FREE if you spend £60

This listing is for the WTB250 & WTB250T - Please select your preferred model from the drop down menu.

High-Volume Performance for Hot Tub & Swim Spas:

The WTB250 series is engineered for high-volume water movement and long-term reliability in demanding spa and pool environments and high-flow swim training environments. Primarily designed to power counter-current systems, these pumps deliver a consistent river-jet volume flow that transforms a standard pool into an swimming treadmill. Available in single or three-phase options, the WTB range provides professional-grade protection and the sustained power necessary for serious uninterrupted swimming,

Key Features & Benefits

High-Volume Flow, Ideal for River Jets: Optimised to move a massive 1210 litres of water per minute, providing the consistent, smooth current required for professional-grade swim spa training.
Maximum Efficiency, Minimum Noise: The hydraulic design is optimised for a high flow rate of up to 1210 l/min ensuring powerful water displacement without unnecessary energy waste or excessive noise.
Built to Withstand Harsh Chemicals: The pump's wet end is constructed from high-strength engineering plastic, specifically chosen for its ability to resist corrosion and wear from salt, chlorine, bromine, and other common spa chemicals, ensuring a long service life.
Flawless Moisture Protection: The motor stator features advanced resin-sealed packaging technology. This provides a superior moisture barrier and improved heat dissipation compared to conventional motors, perfect for humid pool equipment rooms or hot tub cabinets.
Safe, Leak-Free Operation: A wear-resistant mechanical seal system prevents leaks, while the motor shaft is completely isolated from the water to ensure electrical safety and prevent internal corrosion.
Versatile Power Options: Available in both single phase (230V 13.7A) and three phase (400V 4.9A) configurations suited for residential and commercial spa systems.
Fixed Impeller Failure Protection (WTB250T): Three phase variants of the WTB(T) feature a key and nut system to secure the impeller, eliminating the risk of the impeller spinning loose even if the motor is accidentally wired in reverse during setup.

Technical Specifications & Operating Limits

Built for Heat: Rated for liquid and ambient temperatures up to 50°C, making it ideal for high temperature spa applications.
IP55 Weatherproof Rating: Dust-tight and protected against water spray, meeting UK safety standard for outdoor electrical equipment
Continuous Duty: Designed for Class F insulation and continuous operation. These pumps can handle 24/7 filtration cycles without overheating.
Automatic Thermal Protection: The single-phase WTB250 features built-in thermal protection to automatically shut down the motor if it exceeds safe temperatures, preventing a catastrophic burnout
Pressure Rated: Supports a maximum working pressure of 3 bar, suitable for most domestic and light commercial filtration systems.

	WTB250	WTB250T
Max Flow (l/min)	1210	1210
Max Head (m)	11.5	11.5
Power (kw)	2.5	2.5
Power (hp)	3.5	3.5
Single Phase (A)	13.7	-
Three Phase (A)	-	4.9
Fitting Size (mm)	X	X

Why choose the WTB250/T?

One of the most common failure points in hot tub pumps is moisture ingress or chemical degradation, the WTB250 and WTB250T Swimming Training Pumps are able to stand up to these challenges, taking the abuse of continuous operation and harsh environments in its stride.
